Introducing the ImageEn Color Frequency Analysis Demo Application

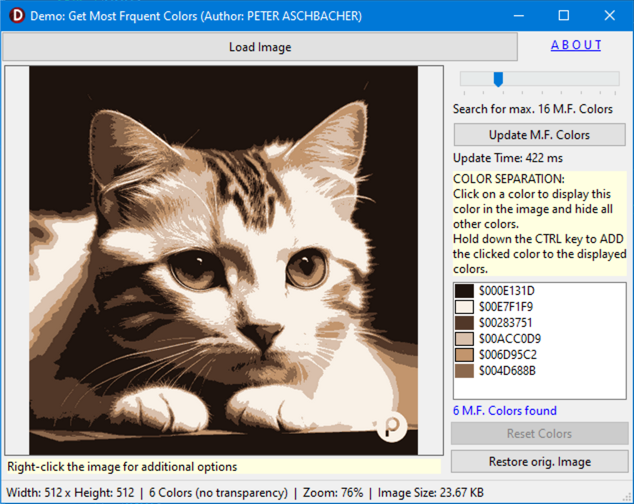

Welcome to the ImageEn Color Frequency Analysis Demo Application using the TImageEnView component from ImageEn in Embarcadero Delphi!
This demo application uses an improved algorithm to extract the n most frequent colors in an image presented on this blog in the last month here. This powerful tool is designed to analyze the most frequent colors in an image and allows users to manipulate these colors in various ways. Whether you're a developer looking to integrate color analysis into your own applications or just someone interested in exploring the color properties of images, this application provides a robust platform to meet your needs.


Load and Display Images
Easily load images into the application using the "Load Image" button. The application supports a wide range of image formats thanks to the ImageEn library:


Analyze Most Frequent Colors
The application automatically calculates the most frequent colors in the whole loaded image or a selected area within the image. Users can specify the number of most frequent colors to search for using a trackbar control:


The n most frequent colors found are displayed in a Color List:


Highlight and Manipulate Colors
    • Highlight and separate Selected Colors: Users can click on a color in the color list to highlight it in the image (while all other colors are hidden). If the CTRL key is held while clicking, multiple colors can be selected and highlighted.

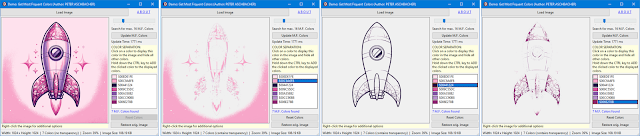

Here is an example of an original image (left-most) and some of its color separations:


    • Reset Colors: Restore all colors to their original opacity:


    • Merge Similar Colors: The application can merge similar colors into a specified number of fundamental colors using a k-means clustering algorithm (right-click the image).
    Reduce the number of Colors: The application can repeatedly reduce the number of colors in the image using an intelligent algorithm (Kohonen or Median cut) (right-click the image):

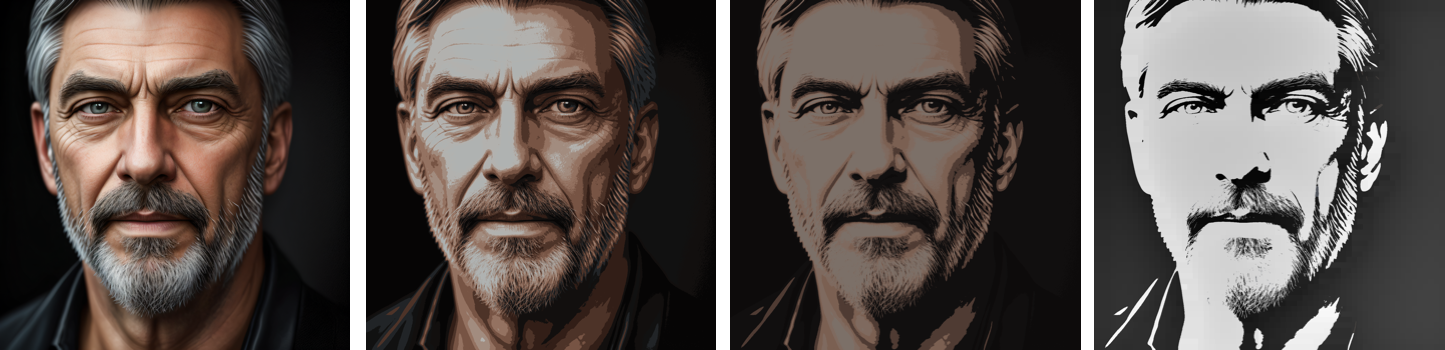

Here is an example of repeatedly clicking the "Reduce the Number of Colors" menu item, achieving interesting color effects:


The "Merge Colors" sub-menu has 3 options to merge the image colors, each to a different maximum number of colors using an advanced k-means clustering algorithm:


Here is an example of repeatedly clicking the "Merge Colors to max. 8" menu item, achieving other interesting color effects:


Here is another example of repeatedly clicking the "Merge Colors to max. 32" menu item, achieving other slightly different color effects:


You can now experiment with different combinations of the color-manipulation effects.

User-Friendly Interface
The application includes a status bar that provides detailed information about the image, such as its dimensions, color count, zoom level, and image size (which varies depending on the included number of colors after each color manipulation):


Behind the Scenes: Key Procedures and Functions
Loading an Image

procedure TForm1.ButtonLoadImageClick(Sender: TObject);

begin

  with ImageEnView1.IO do

    LoadFromFile( ExecuteOpenDialog() );

end;


Analyzing Most Frequent Colors
The GetMostFrequentColors function calculates the most frequent colors in the image:

function GetMostFrequentColors(Image: TImageEnView; Count: Integer): TArray<TColor>;

// get the most frequent colors in a TImageEnView image or in the selected area

var

  Bitmap: Vcl.Graphics.TBitmap;

  x, y: Integer;

  Color: TColor;

  Dict: TDictionary<TColor, Integer>;

  PairList: TList<TPair<TColor, Integer>>;

  Pair: TPair<TColor, Integer>;

  StartX, StartY, EndX, EndY: Integer;

begin

  Dict := TDictionary<TColor, Integer>.Create;

  try

    // Use the internal bitmap of ImageEnView directly

    Bitmap := Image.IEBitmap.VclBitmap;


    // Determine the area to process (entire image or selection)

    if Image.Selected then

    begin

      StartX := Image.SelX1;

      StartY := Image.SelY1;

      EndX := Image.SelX2 - 1;

      EndY := Image.SelY2 - 1;

    end

    else

    begin

      StartX := 0;

      StartY := 0;

      EndX := Bitmap.Width - 1;

      EndY := Bitmap.Height - 1;

    end;


    // Process each pixel to calculate color frequency

    for y := StartY to EndY do

    begin

      for x := StartX to EndX do

      begin

        Color := Bitmap.Canvas.Pixels[x, y];

        if Dict.ContainsKey(Color) then

          Dict[Color] := Dict[Color] + 1

        else

          Dict.Add(Color, 1);

      end;

    end;


    // Prepare to find the most common colors

    PairList := TList<TPair<TColor, Integer>>.Create;

    try

      for Pair in Dict do

        PairList.Add(Pair);


      // Sort by frequency:

      PairList.Sort(System.Generics.Defaults.TComparer<TPair<TColor, Integer>>.Construct(

        function(const L, R: TPair<TColor, Integer>): Integer

        begin

          Result := R.Value - L.Value;

        end));


      // Extract the top 'Count' colors:

      SetLength(Result, PAMin(Count, PairList.Count));

      for x := 0 to High(Result) do

      begin

        Result[x] := PairList[x].Key;

        // Log each color to CodeSite for debugging:

        //CodeSite.SendColor('Common Color ' + IntToStr(x+1) + ': ', PairList[x].Key);

      end;

    finally

      PairList.Free;

    end;

  finally

    Dict.Free;

  end;

end;


Highlighting Selected Colors
The HighlightSelectedColors procedure makes non-selected colors transparent:

procedure TForm1.HighlightSelectedColors;

var

  x, y: Integer;

  IEBitmap: TIEBitmap;

  AlphaBitmap: TIEBitmap;

  PixelColor: TRGB;

  Red, Green, Blue: Byte;

  AlphaScanLine: PByteArray;

  IsSelected: Boolean;

begin

  IEBitmap := ImageEnView1.IEBitmap; // Reference to the ImageEnView bitmap


  // Ensure the bitmap has an alpha channel

  if not IEBitmap.HasAlphaChannel then

    IEBitmap.AlphaChannel; // Accessing AlphaChannel property will create it if it doesn't exist


  AlphaBitmap := IEBitmap.AlphaChannel; // Reference the alpha channel bitmap


  // Process each pixel to make non-selected colors transparent

  for y := 0 to IEBitmap.Height - 1 do

  begin

    AlphaScanLine := AlphaBitmap.ScanLine[y];

    for x := 0 to IEBitmap.Width - 1 do

    begin

      // Access the pixel color as TRGB

      PixelColor := IEBitmap.Pixels_ie24RGB[x, y];

      IsSelected := False;


      for var SelectedColor in SelectedColors do

      begin

        // Extract the RGB components from the selected color

        Red := GetRValue(SelectedColor);

        Green := GetGValue(SelectedColor);

        Blue := GetBValue(SelectedColor);


        // Compare each color component

        if (PixelColor.r = Red) and (PixelColor.g = Green) and (PixelColor.b = Blue) then

        begin

          IsSelected := True;

          Break;

        end;

      end;


      if IsSelected then

        AlphaScanLine[x] := 255 // Make pixel fully opaque

      else

        AlphaScanLine[x] := 0; // Make pixel fully transparent

    end;

  end;


  // Ensure the alpha channel is in sync

  IEBitmap.SyncAlphaChannel;


  // Update the ImageEnView

  ImageEnView1.Update;

end;


Merging Similar Colors
The MergeColors procedure uses k-means clustering to merge similar colors:

procedure TForm1.MergeColors(ImageEnView: TImageEnView; NumColors: Integer);

var

  PixelColors: TArray<TColor>;

  ClusterCenters: TArray<TColorCluster>;

  ClusterMap: TDictionary<TColor, TColor>;

  x, y, i, j: Integer;

  Bitmap: TIEBitmap;

  Color: TColor;

  BestCluster: Integer;

  MinDist, Dist: Double;


  function ColorDistance(C1, C2: TColor): Double;

  var

    R1, G1, B1, R2, G2, B2: Byte;

  begin

    R1 := GetRValue(C1);

    G1 := GetGValue(C1);

    B1 := GetBValue(C1);

    R2 := GetRValue(C2);

    G2 := GetGValue(C2);

    B2 := GetBValue(C2);

    Result := Sqrt(Sqr(R1 - R2) + Sqr(G1 - G2) + Sqr(B1 - B2));

  end;


  function GetAverageColor(Colors: TArray<TColor>): TColor;

  var

    TotalR, TotalG, TotalB: Double;

    i: Integer;

  begin

    TotalR := 0;

    TotalG := 0;

    TotalB := 0;

    for i := 0 to High(Colors) do

    begin

      TotalR := TotalR + GetRValue(Colors[i]);

      TotalG := TotalG + GetGValue(Colors[i]);

      TotalB := TotalB + GetBValue(Colors[i]);

    end;

    Result := RGB(Round(TotalR / Length(Colors)), Round(TotalG / Length(Colors)), Round(TotalB / Length(Colors)));

  end;


  procedure KMeansClusterColors;

  var

    i, j, k, Changed: Integer;

    Clustered: array of TList<TColor>;

    OldCenters: TArray<TColorCluster>;

  begin

    SetLength(ClusterCenters, NumColors);

    SetLength(OldCenters, NumColors);

    SetLength(Clustered, NumColors);


    // Initialize clusters with random colors

    Randomize;

    for i := 0 to NumColors - 1 do

    begin

      ClusterCenters[i].Red := Random(256);

      ClusterCenters[i].Green := Random(256);

      ClusterCenters[i].Blue := Random(256);

      ClusterCenters[i].Count := 0;

      Clustered[i] := TList<TColor>.Create;

    end;


    repeat

      // Clear clusters

      for i := 0 to NumColors - 1 do

      begin

        Clustered[i].Clear;

        OldCenters[i] := ClusterCenters[i];

      end;


      // Assign pixels to clusters

      for i := 0 to High(PixelColors) do

      begin

        BestCluster := 0;

        MinDist := ColorDistance(PixelColors[i], RGB(ClusterCenters[0].Red, ClusterCenters[0].Green, ClusterCenters[0].Blue));

        for j := 1 to NumColors - 1 do

        begin

          Dist := ColorDistance(PixelColors[i], RGB(ClusterCenters[j].Red, ClusterCenters[j].Green, ClusterCenters[j].Blue));

          if Dist < MinDist then

          begin

            MinDist := Dist;

            BestCluster := j;

          end;

        end;

        Clustered[BestCluster].Add(PixelColors[i]);

      end;


      // Recalculate cluster centers

      for i := 0 to NumColors - 1 do

      begin

        if Clustered[i].Count > 0 then

        begin

          ClusterCenters[i].Red := GetRValue(GetAverageColor(Clustered[i].ToArray));

          ClusterCenters[i].Green := GetGValue(GetAverageColor(Clustered[i].ToArray));

          ClusterCenters[i].Blue := GetBValue(GetAverageColor(Clustered[i].ToArray));

        end;

      end;


      // Check if clusters have changed

      Changed := 0;

      for i := 0 to NumColors - 1 do

      begin

        if (ClusterCenters[i].Red <> OldCenters[i].Red) or

           (ClusterCenters[i].Green <> OldCenters[i].Green) or

           (ClusterCenters[i].Blue <> OldCenters[i].Blue) then

          Inc(Changed);

      end;

    until Changed = 0;


    // Clean up

    for i := 0 to NumColors - 1 do

      Clustered[i].Free;

  end;


begin

  Bitmap := ImageEnView.IEBitmap;

  SetLength(PixelColors, Bitmap.Width * Bitmap.Height);


  // Extract pixel colors

  for y := 0 to Bitmap.Height - 1 do

  begin

    for x := 0 to Bitmap.Width - 1 do

    begin

      PixelColors[y * Bitmap.Width + x] := RGBToTColor(Bitmap.Pixels_ie24RGB[x, y]);

    end;

  end;


  // Perform k-means clustering

  KMeansClusterColors;


  // Create a map from old colors to new cluster centers

  ClusterMap := TDictionary<TColor, TColor>.Create;

  try

    for i := 0 to High(PixelColors) do

    begin

      BestCluster := 0;

      MinDist := ColorDistance(PixelColors[i], RGB(ClusterCenters[0].Red, ClusterCenters[0].Green, ClusterCenters[0].Blue));

      for j := 1 to NumColors - 1 do

      begin

        Dist := ColorDistance(PixelColors[i], RGB(ClusterCenters[j].Red, ClusterCenters[j].Green, ClusterCenters[j].Blue));

        if Dist < MinDist then

        begin

          MinDist := Dist;

          BestCluster := j;

        end;

      end;

      ClusterMap.AddOrSetValue(PixelColors[i], RGB(ClusterCenters[BestCluster].Red, ClusterCenters[BestCluster].Green, ClusterCenters[BestCluster].Blue));

    end;


    // Replace pixel colors with the nearest cluster center

    for y := 0 to Bitmap.Height - 1 do

    begin

      for x := 0 to Bitmap.Width - 1 do

      begin

        Bitmap.Pixels_ie24RGB[x, y] := TColorToRGB(ClusterMap[RGBToTColor(Bitmap.Pixels_ie24RGB[x, y])]);

      end;

    end;

  finally

    ClusterMap.Free;

  end;


  // Update the display

  ImageEnView.Update;

end; // end of: MergeColors


Reduce Colors
The ReduceColors procedure reduces the number of colors in the image using an intelligent algorithm (Kohonen or Median cut):

procedure TForm1.ReduceColors;

const

  ColorThresholds: array[0..7] of Integer = (256, 128, 64, 32, 16, 8, 4, 2);

var

  CC, i: Integer;

begin

  IEGlobalSettings().ColorReductionAlgorithm := 0; // Kohonen algorithm

  //IEGlobalSettings().ColorReductionAlgorithm := 1; // Median cut

  IEGlobalSettings().ColorReductionQuality := 100; // maximum quality


  //CodeSite.Send('IEGlobalSettings().ColorReductionAlgorithm', IEGlobalSettings().ColorReductionAlgorithm);

  //CodeSite.Send('IEGlobalSettings().ColorReductionQuality', IEGlobalSettings().ColorReductionQuality);


  CC := ImageEnView1.Proc.CalcImageNumColors();

  for i := Low(ColorThresholds) to High(ColorThresholds) do

  begin

    if CC > ColorThresholds[i] then

    begin

      ImageEnView1.Proc.ConvertTo(ColorThresholds[i], ieOrdered);

      Break; // Ensures it breaks the loop after applying the first valid conversion

    end;

  end;

  ImageEnView1.Update;

end;


Conclusion
The ImageEn Color Frequency Analysis Demo Application provides a comprehensive toolset for analyzing and manipulating the colors in an image. Its features make it an excellent resource for developers, software engineers and hobbyists alike. Explore the capabilities of this application and see how it can enhance your image processing projects.
For more information, tutorials, and updates, visit the PA-Soft Blog. If you have any questions or feedback, feel free to contact me at peter.aschbacher@pa-soft.com.

DOWNLOAD
You can download the source code for this Demo Application, including a compiled and signed executable.
All this is completely free, so please support me as I am in an extremely difficult situation right now, so I can continue to provide more advanced source code for you:
